Aluminium Sheets and Plates manufacturer in UAE

Aluminium Sheets Dealer in Abu Dhabi, Aluminium Hot Rolled (HR) Sheet & Plates Supplier in Abu Dhabi, Al Sheets in Al Ain, Alumnium Alloy Plates Size Chart, Aluminium Sheet Price in Ajman, Alumnium Cold Rolled (CR) Sheet Supplier in Sharjah, Al Sheet Stockist in Jebel Ali, Aluminium Sheets and Plates Exporter in UAE, Al Sheet Stockist in Dubai, Alumnium Alloy Plates Supplier in Jebel Ali

Vidit Aluminium stands out as a leading manufacturer and supplier of Aluminium Sheets and Plates in Dubai, UAE. We take pride in delivering top-notch products tailored for industrial, architectural, and engineering needs. Our Aluminium Sheets and Plates are celebrated for being lightweight, highly resistant to corrosion, and incredibly durable, making them perfect for both indoor and outdoor projects. Crafted in line with international standards, these sheets and plates come in a variety of thicknesses, finishes, and grades to meet a wide range of requirements. With cutting-edge technology, rigorous quality control, and prompt delivery, Vidit Aluminium is committed to providing reliable and cost-effective solutions for clients both locally and globally.

Aluminium Sheets and Plates are mainly made from aluminium, with a few added elements like magnesium, silicon, manganese, and copper to enhance their strength, formability, and corrosion resistance. They boast impressive tensile and yield strength, a low density, and excellent ductility, making fabrication a breeze. These sheets and plates also deliver remarkable thermal and electrical conductivity, along with good weldability and machinability. Their smooth surface finish and oxidation resistance ensure they last a long time. Aluminium sheets and plates maintain structural integrity and toughness, making them ideal for both heavy-duty and precision applications across various industries.

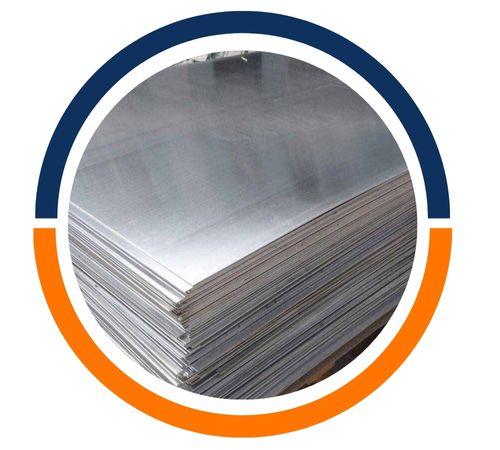

Aluminium Alloy Sheets

Aluminium Hot Rolled Sheets

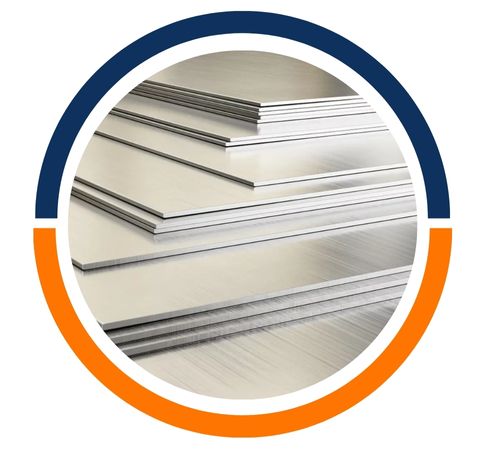

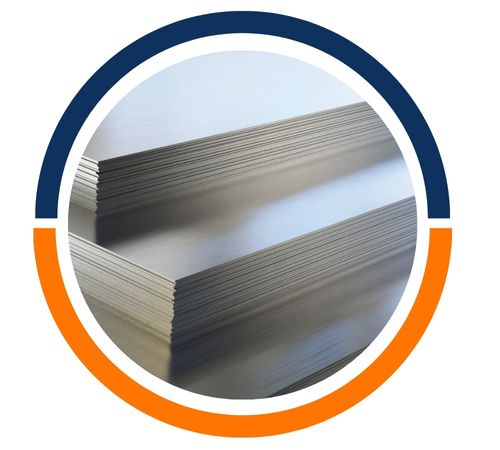

Aluminum Cold Rolled Sheets

Alumnium Clad Sheets Distributor in UAE, Al Perforated Plates Supplier in Dubai, Aluminium Alloy Sheet Weight Chart, Al Plates Exporter in Jebel Ali, Aluminium Polished Sheets Manufacturer in Abu Dhabi, Aluminium Shim Sheet and Plate Price List in Sharjah, Alumnium Chequered Plates Sizes in mm, Alumnium Alloy Hot Rolled Plate Distributor in Al Ain, Al Sheets and Plates Ajman

Specifications of Aluminium Sheets and Plates

Specifications	ASTM / ASME SB209
Size	1000 mm x 60610 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 60610 mm x 60610 mm, 60610 mm x 4000 mm
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Thickness	0.1 to 12 mm Thk
Form	Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

Chemical Compositions of Aluminium Sheets and Plates

Alloy	% Si	% Cu	% Fe	% Mg	% Mn	% Cr	% Zn	% Ti	% Others	% Al
EN AW-1050 A	0.25 Maximum	0.05 Maximum	0.40 Maximum	0.05 Maximum	0.05 Maximum		0.07 Maximum	0.05 Maximum		99.5 Min
EN AW-1070 A	0.20 Maximum	0.03 Maximum	0.25 Maximum	0.03 Maximum	0.03 Maximum		0.07 Maximumimum	0.03 Maximum		99.7 Min
EN AW-1100	Si+Fe 0.95 Maximum	0.05 – 0.20			0.05 Maximum		0.10 Maximum	0.05 Maximum		99.0 Min
EN AW-2011	0.40 Max	5.00 – 6.00	0.70 Max				0.30 Max		Bi : 0.20 – 0.60 Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	3.90 – 5.00	0.70 Max	0.20 – 0.80	0.40 – 1.20	0.10 Max	0.25 Max	0.15 Max		Remainder
EN AW-2024	0.50 Max	3.80 – 4.90	0.50 Max	1.20 -1.80	0.30 – 0.90	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	0.05 – 0.20	0.70 Max		1.00 – 1.50		0.10 Max		0.15 Max	Remainder
EN AW-3103	0.50 Maximum	0.10 Maximum	0.70 Maximum	0.30 Maximum	0.90 – 1.50	0.10 Maximum	0.20 Maximum	0.10 Maximum		Remainder
EN AW-6101A	0.30 – 0.7	0.05 Maximum	0.40 Maximum	0.40 – 0.90	0.03 Maximum				0.10 Maximum	Remainder
EN AW-6005	0.60 – 0.90	0.10 Max	0.35 Max	0.40 – 0.60	0.10 Max	0.10 Max	0.10 Max	0.10 Max		Remainder
EN AW-6351	0.70 – 1.30	0.10 Maximum	0.50 Maximum	0.40 – 0.80	0.40 – 0.80		0.20 Maximum	0.20 Maximum	0.15 Maximum	Remainder
EN AW-6060	0.30 – 0.60	0.10 Maximum	0.10 – 0.30	0.35 – 0.60	0.10 Maximum	0.05 Maximum	0.15 Maximum	0.10 Maximum		Remainder
EN AW-6061	0.40 – 0.80	0.15 – 0.40	0.70 Max	0.80 – 1.20	0.15 Max	0.04 – 0.35	0.25 Max	0.15 Max		Remainder
EN AW-6063	0.20 – 0.60	0.10 Max	0.35 Max	0.45 – 0.90	0.10 Max	0.10 Max	0.10 Max	0.10 Max		Remainder
EN AW-6082	0.70 – 1.30	0.10 Max	0.50 Max	0.60 -1.20	0.40 – 1.00	0.25 Max	0.20 Max	0.10 Max		Remainder

Mechanical Properties of Aluminium Sheets and Plates

Alloy	Temper	Yield Strength (Mpa)		UTS (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A Sheet	F	20		60		23
EN AW-1050 A Sheet	O	20		60	95	23
EN AW-1070 A	F	20		60		23
EN AW-1100	O			75	110	25
EN AW-2011 Sheet	T4	125		275		12
EN AW-2011 Sheet	T6	230		310		6
EN AW-2014	O		135		250	10
	T4	230		370		11
	T6	370		415		5
EN AW-2024 Perforated Sheet	O		150		250	10
	T3,T3510,T3511	290		395		6
	T8,T8510,T8511	380		455		4
EN AW-3003 Mesh Sheet	F	35		95		20
EN AW-3003 Mesh Sheet	O	35		95	135	20
EN AW-3103 Sheets	F	35		95		20
EN AW-3103 Sheets	O	35		95	135	20
EN AW-6101A Shim Sheet	T6	170		200		8
EN AW-6005 Sheet	T4	90		180		13
EN AW-6005 Sheet	T6	225		270		6
EN AW-6351 Sheet	O		110		160	12
	T4	110		205		12
	T6	250		290		6
EN AW-6060	T4	60	14	120		12
	T5	120		160		6
	T6	150		190		6
	T64	120		180		10
	T66	160		215		6
EN AW-6061	O		110		150	14
	T4	110		180		13
	T6	240		260		6
EN AW-6063	O				130	16
	T4	65		130		12
	T5	130		175		6
	T6	170		215		6
	T66	200		245		6
EN AW-6082	O		110		160	12
	T4	110		205		12
	T5	230		270		6
	T6	250		290		6

Get a Customized Quote for High-Quality Aluminium Products Tailored to Your Needs!

Types of Aluminium Sheets and Plates

Largest Aluminium Sheets and Plates Manufacturer and Exporter in Dubai, UAE

Aluminium sheets and plates are incredibly popular across various industries, and it’s easy to see why—they’re strong, versatile, and can withstand tough environments. In the construction world, you’ll find them used in roofing, cladding, facades, and structural elements. When it comes to transportation and aerospace, these materials shine in body panels, flooring, fuel tanks, and aircraft components, all thanks to their lightweight nature. The marine industry also loves aluminium sheets and plates for shipbuilding and offshore projects because they resist seawater so well. Plus, they’re commonly found in packaging, cookware, machinery, and even decorative designs. Their flexibility makes them a must-have in engineering, architecture, and industrial fabrication projects all around the globe.

Equivalent Grades of Aluminium Sheets and Plates

STANDARD	WERKSTOFF NR.	UNS
Aluminium	3.1254	A96082

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Sizes Chart Of Aluminium Sheets and Plates

AL Sheet Size (In Inches)		Roofing Sheet Size (In milimeter)
.125″	.875″	3.18	22.2
.134″	1″	3.40	25.4
.156″	1.125″	3.96	28.6
.187″	1.250″	4.75	31.8
.250″	1.500″	6.35	38.1
.312″	1.750″	7.92	44.5
.375″	2″	9.53	50.8
.500″	2.500″	12.7	63.5
.625″	3″	15.9	76.2
.750″		19.1

Are Custom Sizes Available For Aluminium Sheets and Plates?

Yes, we offer custom sizes for Aluminium Sheets and Plates to meet specific project needs. Our team at Vidit Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@viditaluminium.ae

Uses of Aluminium Sheets and Plates

Aluminium Sheets and Plates are versatile materials used across a wide range of industries. In construction, they are employed for roofing, cladding, and structural components due to their durability and corrosion resistance. The automotive and aerospace industries rely on aluminium for lightweight body panels and structural parts, enhancing fuel efficiency. In marine applications, they are valued for their resistance to saltwater corrosion. Additionally, aluminium sheets and plates are widely used in packaging, electrical enclosures, cookware, and signage, making them indispensable in modern manufacturing and infrastructure projects.
