Vidit Aluminium stands out as a reliable manufacturer and supplier of Aluminium 5086 Bars in Dubai, UAE. We pride ourselves on delivering top-notch products that are built to endure tough environments and meet demanding applications. Aluminium 5086 is a marine-grade alloy celebrated for its exceptional corrosion resistance, impressive weldability, and robust strength, making it a go-to choice across various industries. At Vidit Aluminium, we offer Aluminium 5086 Bars in a variety of sizes, tempers, and finishes, all while ensuring we meet international standards. Our dedication to precision, durability, and prompt delivery has helped us build a solid reputation among clients around the globe.
Aluminium 5086 Bars are mainly made of aluminium, enriched with a good amount of magnesium, along with small amounts of manganese, iron, silicon, and chromium. This unique blend gives them remarkable corrosion resistance, particularly in saltwater and marine settings, along with superior strength compared to many other aluminium alloys. In terms of mechanics, Aluminium 5086 Bars boast a tensile strength ranging from 250 to 400 MPa and a yield strength of about 150 to 290 MPa, along with excellent elongation and toughness. While they can’t be heat treated, they maintain high weldability and formability, making them ideal for critical engineering and marine applications.
| Bar Wire Standard | ASTM B221, B211, B565, B316, AMS 4121 2014 |
| Bar Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |

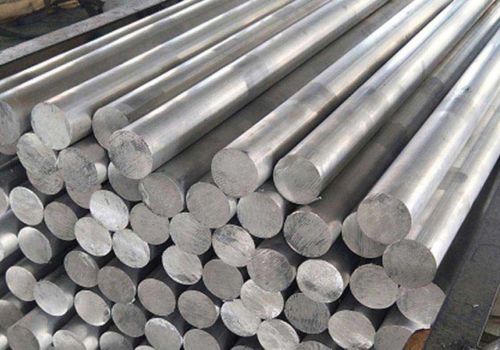

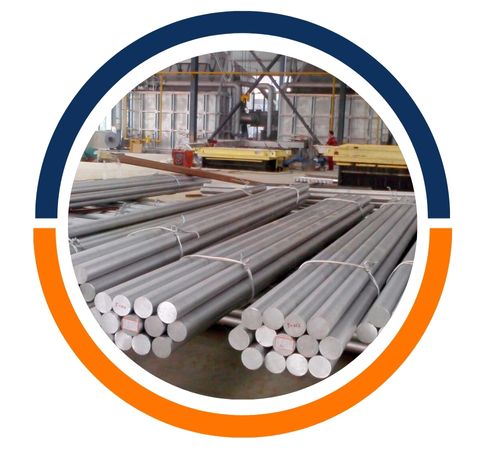

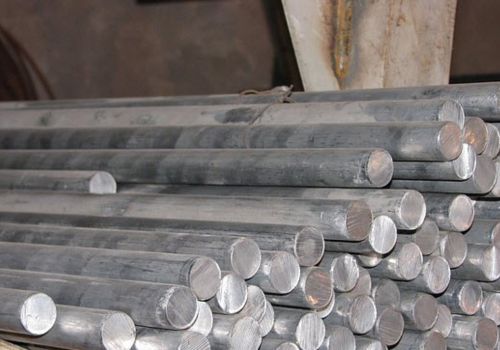

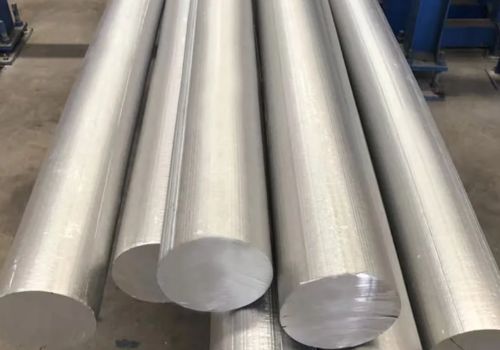

| Round bar size | Diameter: 3-~800mm |

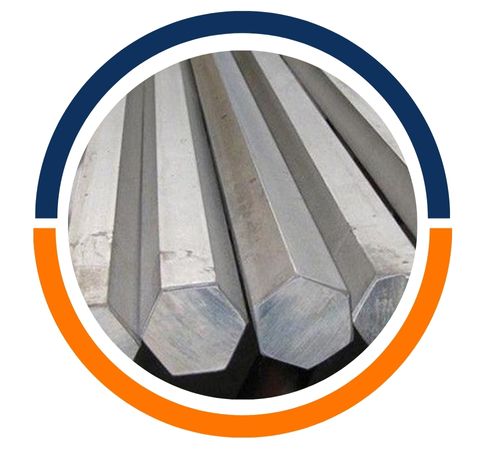

| Hex Bar size | 2-100mm A/F |

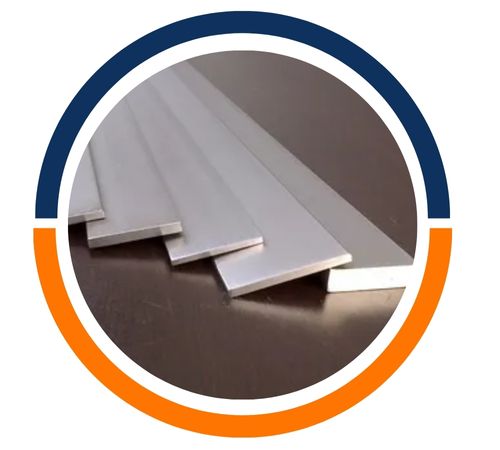

| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

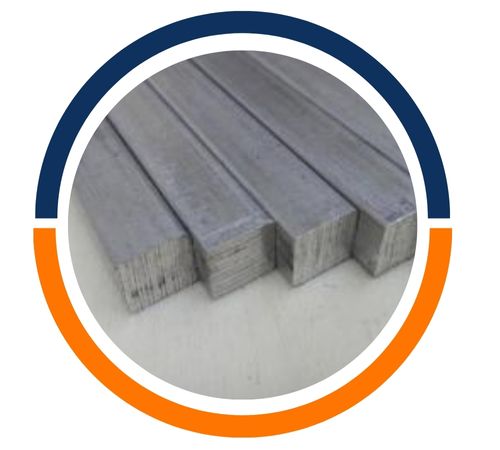

| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

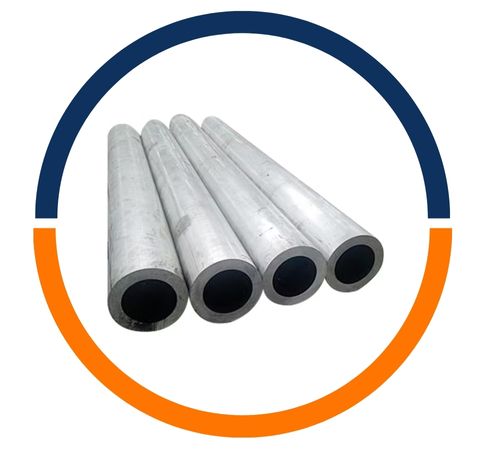

| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Rectangular Size | 33 x 30mm to 295 x 1066mm |
| Bars Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Bar Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Tempers | Tempers range from dead soft annealed to ultra spring temper |
| Rolled Flat Bars Condition | Hardened & tempered, annealed |
| Cold Rolled Bar Technique | Aluminium Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Rounds Bar Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Grade | Ir | Si | Mg | Mn | Cu | Zn | Cr | Ti |
| Aluminium 5086 | 0.5 | 0.4 | 3.5-4.5 | 0.20-0.70 | 0.1 | 0.25 | 0.05-0.25 | 0.15 |
| Grade | Tensile Strength | Hardness Brinell | Elongation |
| Aluminium 5086 | 275 – 350 Mpa | 75 HB | 12 Min % |
| STANDARD | WERKSTOFF NR. | ISO | Din | UNS |
| Aluminium 5086 | 3.3545 | AlMg4 | AlMg4Mn | A95086 |
Vidit Aluminium based in Dubai, UAE is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 5086 Bars to meet specific project needs. Our team at Vidit Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@viditaluminium.ae
Aluminium 5086 Bars find their place in industries that require high strength and corrosion resistance. They are commonly used in shipbuilding, boat hulls, and offshore structures due to their durability in seawater. In the automotive and aerospace fields, they serve as materials for chassis, frames, and structural components. These bars are also essential in pressure vessels, chemical processing equipment, cryogenic tanks, and defense applications. Additionally, their versatility and strength make them perfect for architectural structures, bridges, and heavy engineering projects, ensuring long-lasting performance even in challenging conditions.
