Aluminium 5083 Sheets and Plates manufacturer in UAE

Aluminium 5083 Sheets Dealer in Abu Dhabi, Alumnium 5083 Hot Rolled (HR) Sheet and Plates Supplier in Abu Dhabi, Al 5083 Sheets in Al Ain, Aluminium Alloy 5083 Plates Size Chart, Alumnium 5083 Sheet Price in Ajman, Aluminium 5083 Cold Rolled (CR) Sheet Supplier in Sharjah, Aluminium 5083 Sheet Stockist in Jebel Ali, Aluminium 5083 Sheets and Plates Exporter in UAE, Al 5083 Sheet Stockist in Dubai, Alumnium Alloy 5083 Plates Supplier in Jebel Ali

Vidit Aluminium, based in Dubai, UAE, stands out as a top manufacturer and supplier of Aluminium 5083 Sheets and Plates. They pride themselves on delivering high-quality products that adhere to international standards. These sheets and plates are renowned for their remarkable strength, durability, and resistance to corrosion, making them perfect for tough environments, particularly in marine and industrial settings. Crafted with cutting-edge technology and rigorous quality checks, they ensure outstanding performance, easy weldability, and a great finish. As a reliable manufacturer of Aluminium 5083 Sheets and Plates in the UAE, Vidit Aluminium offers tailored sizes, prompt delivery, and competitive pricing to serve both global and local markets.

Aluminium 5083 Sheets and Plates mainly consist of aluminium, with magnesium being the primary alloying element, along with trace amounts of manganese and chromium. This unique blend grants them exceptional resistance to corrosion, especially in seawater and chemically harsh conditions. On the mechanical side, they boast high tensile strength, good yield strength, impressive elongation, and remarkable toughness. Their lightweight design, paired with an excellent strength-to-weight ratio and high fatigue resistance, makes them ideal for high-performance structural and fabrication uses.

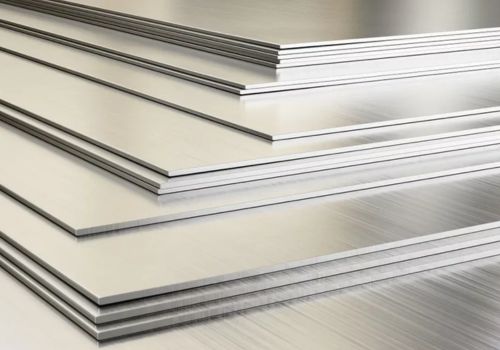

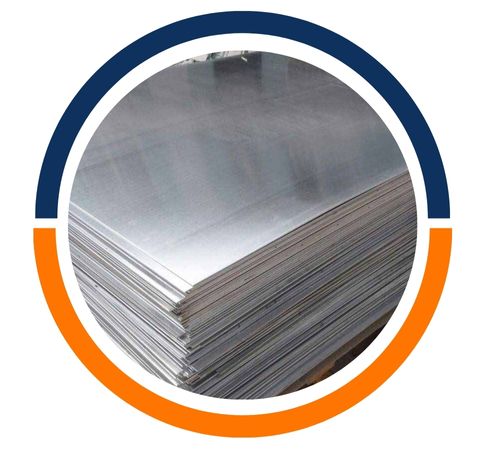

Aluminium 5083 Alloy Sheets

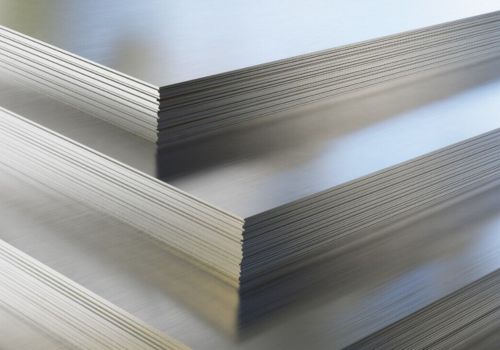

Aluminium 5083 Hot Rolled Sheets

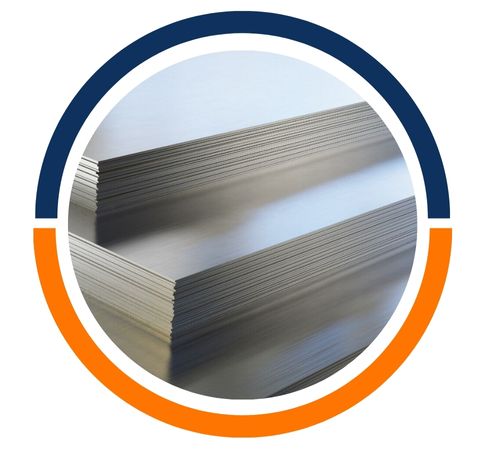

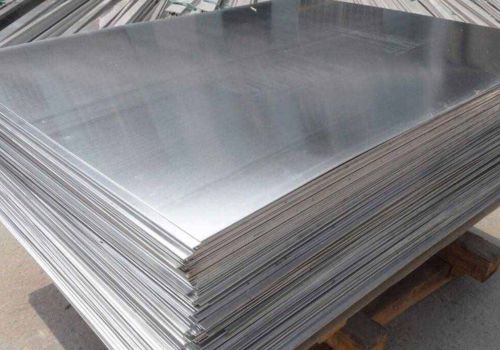

Aluminum 5083 Cold Rolled Sheets

Aluminium 5083 Clad Sheets Distributor in UAE, Al 5083 Perforated Plates Supplier in Dubai, Aluminium Alloy 5083 Sheet Weight Chart, Al 5083 Plates Exporter in Jebel Ali, Alumnium 5083 Polished Sheets Manufacturer in Abu Dhabi, Aluminium 5083 Shim Sheet and Plate Price List in Sharjah, Aluminium 5083 Chequered Plates Sizes in mm, Alumnium Alloy 5083 Hot Rolled Plate Distributor in Al Ain, Al 5083 Sheets and Plates Ajman

Specifications of Aluminium 5083 Sheets and Plates

Standards : ASTM B209 / ASME SB209

Temper : O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38

Thickness : 0.2-250

Width : 100-2600

Length : 500-10000

Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.

Finish :Mill, Customer specific finish

Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet

Chemical Compositions of Aluminium 5083 Sheets and Plates

Al	Si	Fe	Cu	Mn	Cr	Mg	Ti	Zn	Other Each	Others Total
Bal	0.40 max	0.40 max	0.10 max	0.40 / 1.0	0.05 / 0.25	4.0 / 4.90	0.15 max	0.25 max	0.05 max	0.15 max

Mechanical Properties of Aluminium 5083 Sheets and Plates

Proof Stress	Tensile Strength	Hardness Brinell	Elongation
125 Min MPa	275 – 350 MPa	75 HB	12 Min %

Get a Customized Quote for High-Quality Aluminium Products Tailored to Your Needs!

Types of Aluminium 5083 Sheets and Plates

Largest Aluminium 5083 Sheets and Plates Manufacturer and Exporter in Dubai, UAE

Vidit Aluminium based in Dubai, UAE is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.

Equivalent Grades of Aluminium 5083 Sheets and Plates

European Standard	OLD	WNr	UNS	ISO	USA (AA)	GERMANY (DIN)
AW-AlMg4,5Mn0,7	AG4,5MC	3.3547	A95083	AlMg4,5Mn0,7	5083	AlMg4,5Mn

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Sizes Chart Of Aluminium 5083 Sheets and Plates

Sizes (mm)	Theoretical Mass KG/Plate
2000 X 1000 X 0.5	2500 X 1250 X 0.5
2000 X 1000 X 0.7	2500 X 1250 X 0.7
2000 X 1000 X 0.9	2500 X 1250 X 0.9
2000 X 1000 X 1.2	2500 X 1250 X 1.2
3000 X 1500 X 1.2	2000 X 1000 X 1.6
2500 X 1250 X 1.6	3000 X 1500 X 1.6
2000 X 1000 X 2.0	2500 X 1250 X 2.0
3000 X 1500 X 2.0	2500 X 1250 X 2.5
2.79	4.36
3.91	6.10
5.02	7.85
6.74	10.46
15.01	8.93
13.95	20.09
11.16	17.44
25.11	21.80

Are Custom Sizes Available For Aluminium 5083 Sheets and Plates?

Yes, we offer custom sizes for Aluminium 5083 Sheets and Plates to meet specific project needs. Our team at Vidit Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@viditaluminium.ae

Uses of Aluminium 5083 Sheets and Plates

These Aluminium 5083 Sheets and Plates find extensive applications in shipbuilding, marine structures, and offshore platforms, thanks to their outstanding resistance to saltwater corrosion. In the transportation sector, they are utilized in automotive, aerospace, and rail industries for components that are both lightweight and strong. Additionally, they are employed in pressure vessels, chemical tanks, and cryogenic applications due to their durability and ability to withstand harsh environments. In construction and engineering, these sheets and plates are essential for architectural structures, flooring, and heavy-duty frameworks, ensuring long-lasting reliability and performance.
