Vidit Aluminium is a leading manufacturer and supplier based in Dubai, UAE, specializing in high-quality aluminium products. With years of industry expertise, the company offers a wide range of aluminium solutions, including Aluminium 5052 Chequered Plates. Known for their strength, durability, and corrosion resistance, these chequered plates are ideal for diverse applications such as marine, automotive, and industrial sectors. Vidit Aluminium is committed to delivering exceptional products tailored to meet the specific needs of its clients.

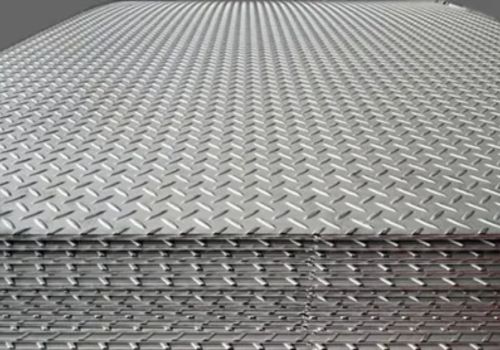

Aluminium 5052 Chequered Plates are made from an alloy primarily consisting of 97.25% aluminium, 2.5% magnesium, and 0.25% chromium, providing excellent corrosion resistance, especially in marine and coastal environments. These plates offer high strength, with a tensile strength ranging from 210 to 230 MPa and yield strength of around 155 MPa. The material also features good weldability, formability, and workability. With a hardness of approximately 60 on the Brinell scale, Aluminium 5052 Chequered Plates are ideal for applications requiring strength and resistance to stress and corrosion.
Standards : ASTM B209 / ASME SB209
Temper : O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38,H111,H112,H114,H 116,H321
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Chequered Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Chequered Plate
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg2,5 | AG2,5C | 3.3523 | A95052 | AlMg2,5 | 5052 | AlMg2,5 |
| Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
| 0.50 | 0.50 | 3.8/4.9 | 0.30/0.9 | 1.2/1.8 | 0.10 | 0.25 | 0.15 | Balance |
| Hardness, Brinell | Poisson’s Ratio | Melting Point | Electrical Resistivity | Modulus of Elasticity | Specific Heat |
| 47 | 0.33 | 607 – 649 °C | 4.99e-006 ohm-cm | 70.3 GPa | 0.88 J/g-°C |
Vidit Aluminium based in Dubai, UAE is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 5052 Chequered Plates to meet specific project needs. Our team at Vidit Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@viditaluminium.ae
Aluminium 5052 Chequered Plates are widely used across various industries due to their strength, corrosion resistance, and durability. They are commonly found in the marine, automotive, and transportation sectors, used for manufacturing boat decks, flooring, vehicle bodies, and trailers. These plates also serve in applications requiring slip-resistant surfaces, such as ramps, stairs, and walkways. Additionally, they are used in storage tanks, heat exchangers, and pressure vessels, where high resistance to corrosion and stress is essential, making them ideal for both industrial and commercial purposes.
