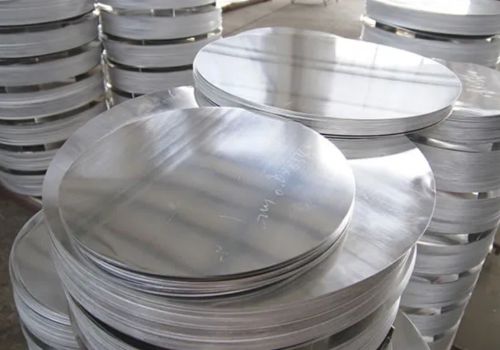

Vidit Aluminium stands out as a top manufacturer and supplier of Aluminium 2017 Circles in Dubai, UAE, delivering high-quality products that align with international standards. This heat-treatable alloy, primarily mixed with copper, is celebrated for its impressive strength, hardness, and resistance to corrosion. Our Aluminium 2017 Circles are crafted with precision, ensuring they are durable and versatile—perfect for aerospace, automotive, and structural applications where a high strength-to-weight ratio is crucial. At Vidit Aluminium, we prioritize consistent quality, precise dimensions, and a superb surface finish, making our Aluminium 2017 Circles a trusted choice for both local and global industries.
Aluminium 2017 Circles consist of about 4.0–5.0% copper, 0.4–1.2% magnesium, and 0.4–1.0% manganese, with the remainder being aluminium, along with small amounts of silicon, iron, and zinc. This blend results in high tensile strength (up to 370 MPa), good hardness, moderate corrosion resistance, and excellent fatigue resistance. On the mechanical side, Aluminium 2017 boasts outstanding machinability, weldability, and dimensional stability, making it perfect for precision fabrication, spinning, and structural uses. The mix of strength, durability, and lightweight characteristics makes these circles ideal for aerospace, automotive, and heavy-duty industrial applications.

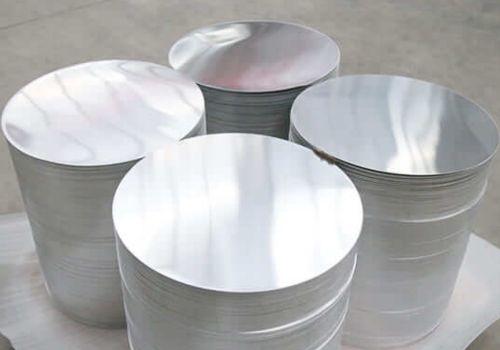

| Specifications | ASTM B209 / ASME SB209 |
|---|---|

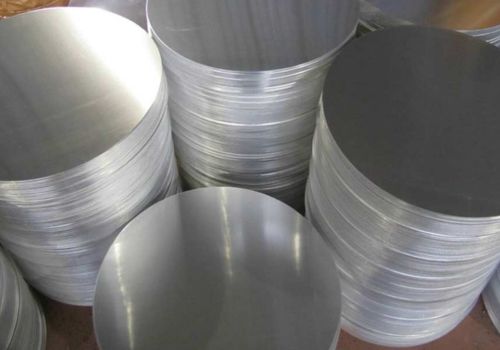

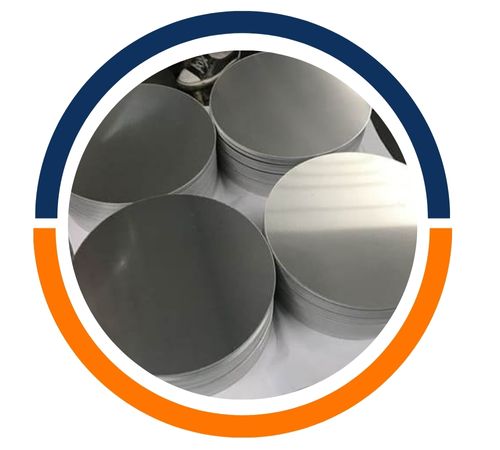

| Temper | O,H12,H14,H16,H18,H19,H22,H24 |
| Thickness | 1 Mm To 100 mm |
| Diameter | Upto 2000 mm |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max |

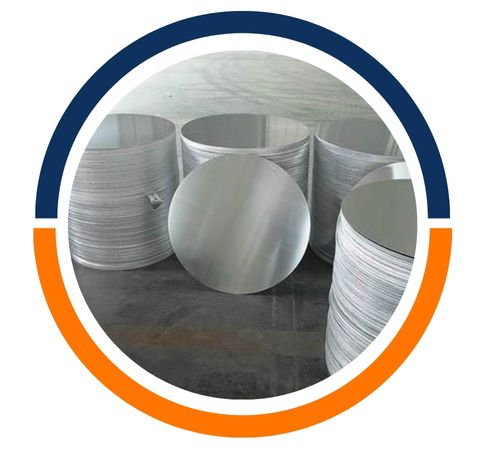

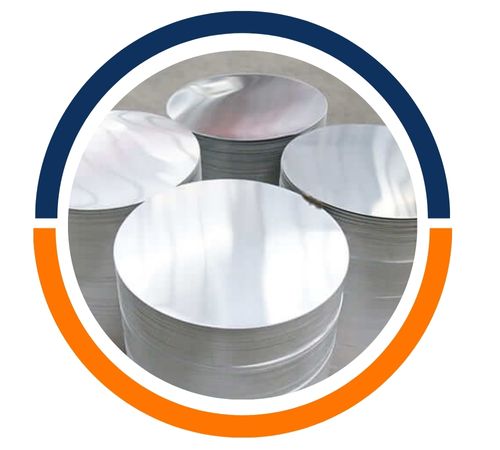

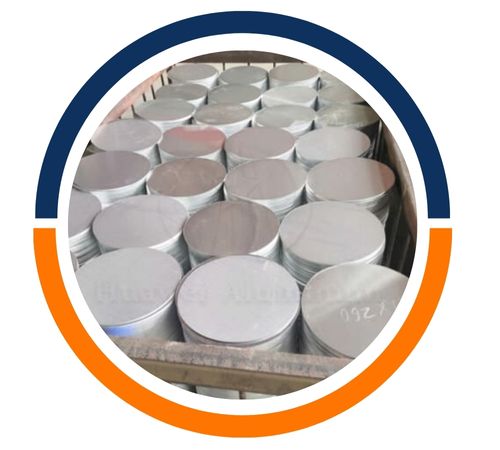

| Circles Form | Hot Rolled Circles, Cold Rolled Circle, Proof Machined Circles |
| Finish | Mill, Customer specific finish |
| Aluminum Circle Coating | PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating |
| Al | Si | Mg | Cr | Zn | Fe | Cu | Mn | Ti | Other Each | Other Total |
| Bal. | 0.20-0.8 | 0.40-0.8 | 0.10 max | 0.25 max | 0.7 max | 3.5-4.5 | 0.40-1.0 | 0.15 max | 0.05 max | 0.15 max |
| Material | Tensile Strength (N/mm²) min | Yield Strength | Elongation in 4D % | ||
| ksi | Mpa | ksi | Mpa | ||
| Al 2017 | 55 | 379 | 32 | 221 | 12 |
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
|---|---|---|---|---|---|---|
| AW-AlCu4MgSi | AU4G | 3.1325 | A92017 | AlCu4SiMg | 2017 | AlCuMg1 |
Vidit Aluminium based in Dubai, UAE is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 2017 Circles to meet specific project needs. Our team at Vidit Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@viditaluminium.ae
Aluminum 2017 circle are widely used in aerospace, automotive and industrial applications due to their high strength and mechanical properties. It is commonly used in aircraft structural components, such as fuselage and wings, where durability and performance are required In the automotive industry it is used for engine components, wheels and gearboxes. In addition, these circle find applications in pressure vessels, machine precision parts and hardware products. Their excellent thermoelectric conductivity makes them suitable for heat exchangers and electrical connections. However, due to their low corrosion resistance, protective coatings are often applied in areas requiring greater durability.
