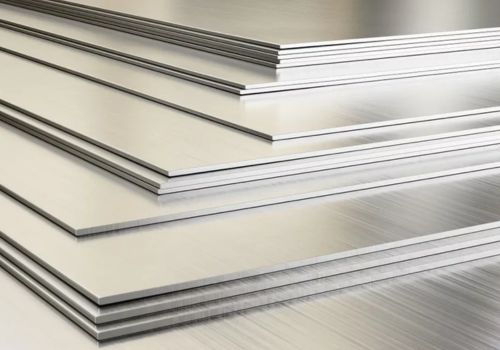

Vidit Aluminium stands out as a top-notch manufacturer and supplier of Aluminium 1050 Sheets and Plates in Dubai, UAE, known for delivering exceptional quality and reliability. Aluminium 1050 is a commercially pure alloy celebrated for its remarkable corrosion resistance, impressive ductility, and excellent formability. Our sheets and plates find their way into various industries that demand lightweight yet robust materials. With a strong focus on precision engineering and adherence to international quality standards, Vidit Aluminium offers Aluminium 1050 Sheets and Plates that meet the diverse needs of architectural, electrical, chemical, and general fabrication sectors.
Aluminium 1050 Sheets and Plates consist of 99.5% pure aluminium, with small amounts of iron, silicon, copper, and manganese added. This alloy is known for its outstanding corrosion resistance, excellent ductility, and high thermal conductivity. Typically, its tensile strength falls between 60–100 MPa, and it boasts good elongation properties, making it perfect for forming and bending tasks. While it may not be as strong as some other alloys, Aluminium 1050 shines with its superb anodizing capabilities, making it a great choice for decorative and protective surface finishes.
| Standards | ASTM B209 / ASME SB209 |
| Temper | O,H12,H14,H16,H18,H19,H22,H24 |
| Thickness | 0.2-50 |
| Width | 100-2600 |
| Length | 500-10000 |
| Surface | Bright, polished, hair line, brush, sand blast, embossed, etching, etc. |
| Finish | Mill, Customer specific finish |
| Aluminum Sheet/ Plate Coating | PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating |
| Type | Hot-Rolled (HR) / Cold-Rolled (CR) Sheet |
| Alloy (ISS) | Equivalent alloy (A.A) | Copper | Magnesium | Silicon | Iron | Managanese Others* (Total) | Remarks | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Old | New | U.S.A | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max | Max. | Aluminum 99.0% Min. | ||
| 1 B | 19500 | 1050 | — | 0.05 | — | — | — | 0.30 | 0.4 | — | 0.05 | 0.1 | Aluminum 99.5% Min. | ||
| Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) | ||
| EN AW-1050 A | F | 60 | – | 20 | – | 23 |
| O | 60 | 95 | 20 | – | 23 | |
Vidit Aluminium based in Dubai, UAE is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| European Standard | BS (OLD) | USA (AA) | GERMANY (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-1050 A | 1E | 1050 | Al99.5 | Al99.5 | 19500, 19501 | 1 S |
| Sizes (mm) | Theoretical Mass KG/Plate |
|---|---|
| 2000 X 1000 X 0.5 | 2500 X 1250 X 0.5 |
| 2000 X 1000 X 0.7 | 2500 X 1250 X 0.7 |
| 2000 X 1000 X 0.9 | 2500 X 1250 X 0.9 |
| 2000 X 1000 X 1.2 | 2500 X 1250 X 1.2 |
| 3000 X 1500 X 1.2 | 2000 X 1000 X 1.6 |
| 2500 X 1250 X 1.6 | 3000 X 1500 X 1.6 |
| 2000 X 1000 X 2.0 | 2500 X 1250 X 2.0 |
| 3000 X 1500 X 2.0 | 2500 X 1250 X 2.5 |
| 2.79 | 4.36 |
| 3.91 | 6.10 |
| 5.02 | 7.85 |
| 6.74 | 10.46 |
| 15.01 | 8.93 |
| 13.95 | 20.09 |
| 11.16 | 17.44 |
| 25.11 | 21.80 |
| Product | Thickness | Weight |
|---|---|---|
| 1050 Aluminium Plate | 0,30 mm | 0,810 Kg/m2 |
| 1050 Aluminium Plate | 0,40 mm | 1,080 Kg/m2 |
| 1050 Aluminium Plate | 0,50 mm | 1,350 Kg/m2 |
| 1050 Aluminium Plate | 0,60 mm | 1,620 Kg/m2 |
| 1050 Aluminium Plate | 0,70 mm | 1,890 Kg/m2 |
| 1050 Aluminium Plate | 0,80 mm | 2,160 Kg/m2 |
| 1050 Aluminium Plate | 0,90 mm | 2,430 Kg/m2 |
| 1050 Aluminium Plate | 1,00 mm | 2,700 Kg/m2 |
| 1050 Aluminium Plate | 1,20 mm | 3,240 Kg/m2 |
| 1050 Aluminium Plate | 1,40 mm | 3,780 Kg/m2 |
| 1050 Aluminium Plate | 1,50 mm | 4,050 Kg/m2 |
| 1050 Aluminium Plate | 1,60 mm | 4,320 Kg/m2 |
| 1050 Aluminium Plate | 1,80 mm | 4,860 Kg/m2 |
| 1050 Aluminium Plate | 2,00 mm | 5,400 Kg/m2 |
| 1050 Aluminium Plate | 2,20 mm | 5,940 Kg/m2 |
| 1050 Aluminium Plate | 2,50 mm | 6,750 Kg/m2 |
| 1050 Aluminium Plate | 3,00 mm | 8,100 Kg/m2 |
| 1050 Aluminium Plate | 4,00 mm | 10,800 Kg/m2 |
| 1050 Aluminium Plate | 5,00 mm | 13,500 Kg/m2 |
| 1050 Aluminium Plate | 6,00 mm | 16,200 Kg/m2 |
| 1050 Aluminium Plate | 10,00 mm | 27,000 Kg/m2 |
| 1050 Aluminium Plate | 12,00 mm | 32,400 Kg/m2 |
| 1050 Aluminium Plate | 15,00 mm | 40,500 Kg/m2 |
| 1050 Aluminium Plate | 20,00 mm | 54,000 Kg/m2 |
Yes, we offer custom sizes for Aluminium 1050 Sheets and Plates to meet specific project needs. Our team at Vidit Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@viditaluminium.ae
Aluminium 1050 Sheets and Plates are commonly utilized in chemical processing equipment, the food and beverage industry, and architectural projects due to their corrosion resistance and non-toxic nature. They are also popular in roofing, cladding, insulation panels, and signage because of their lightweight and durable characteristics. The electrical sector employs them in busbars and conductors, thanks to their excellent electrical conductivity. Furthermore, Aluminium 1050 Sheets and Plates are used in heat exchangers, kitchenware, and reflective surfaces, showcasing their versatility in both industrial and domestic applications.
