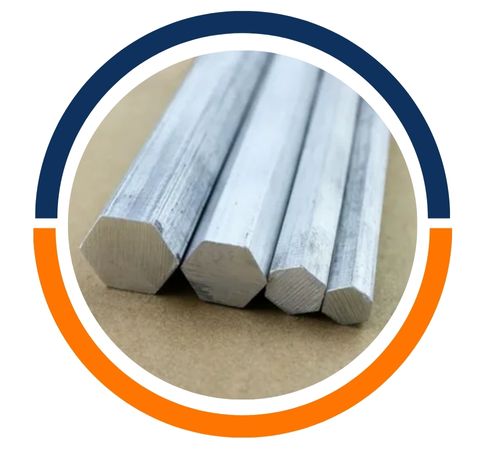

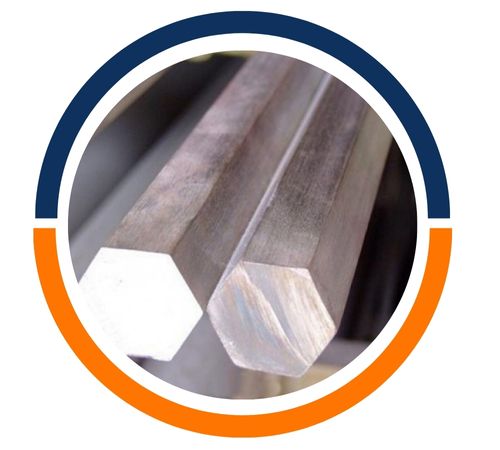

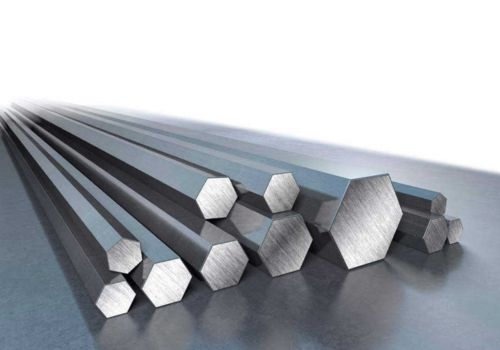

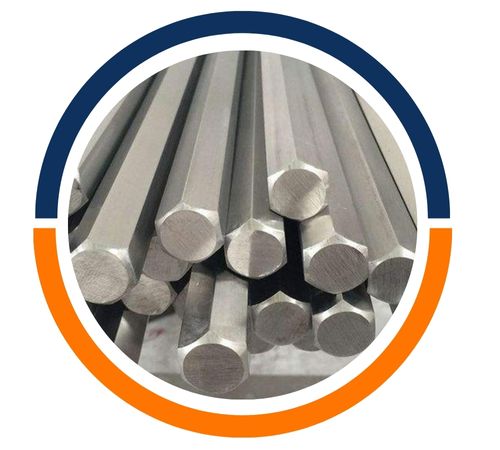

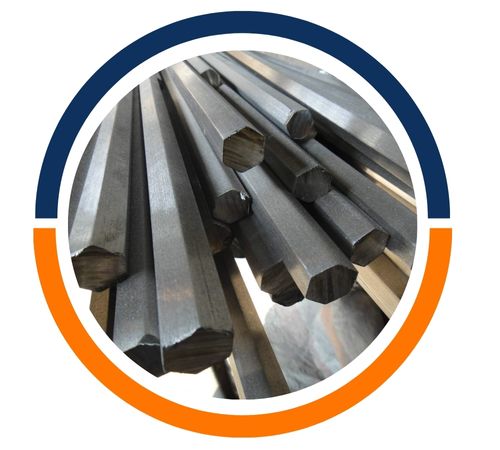

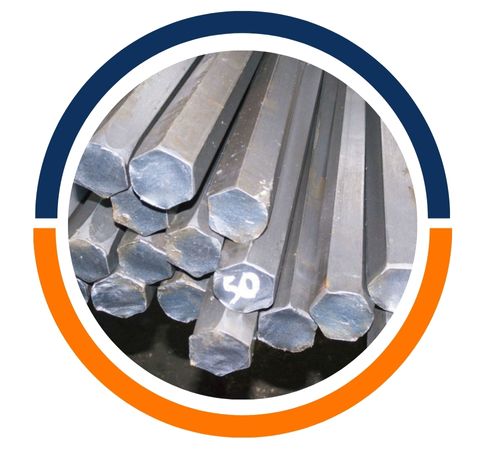

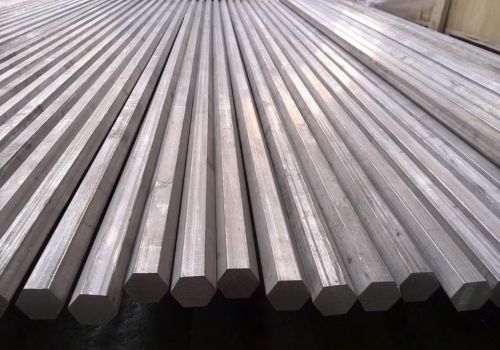

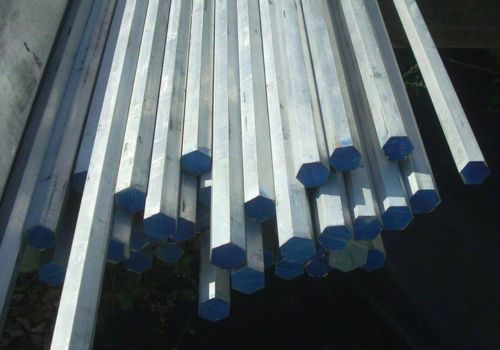

Vidit Aluminium is a well-respected name in the manufacturing and supply of Aluminium 1050 Hex Bars right here in Dubai, UAE. They pride themselves on delivering top-notch products that adhere to international standards. These hex bars are celebrated for their impressive corrosion resistance, high ductility, and excellent machinability, making them a go-to choice for a variety of industrial and commercial uses. With remarkable thermal and electrical conductivity, these lightweight yet sturdy bars are perfect for applications across construction, electrical, automotive, and general engineering sectors. Vidit Aluminium is committed to precision, timely delivery, and ensuring customer satisfaction, solidifying their reputation as a reliable partner for aluminium solutions.
Aluminium 1050 Hex Bars are made up of 99.5% pure aluminium, with just a hint of silicon, iron, copper, manganese, and zinc. They boast a tensile strength ranging from 60 to 100 MPa, along with excellent ductility and a density of 2.71 g/cm³, which makes them both lightweight and easy to handle. These bars are known for their high thermal conductivity (around 222 W/mK) and good electrical conductivity. While they may not be as strong as some alloyed aluminium grades, their remarkable formability, machinability, and resistance to corrosion make them incredibly versatile for a range of structural and fabrication needs.
Specification : ASTM B 221 ASME SB 221, B211, B565, B316 1100, AMS 4102
Standard : ASTM, BS and all International Standards
Temper : O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Length : 100 mm To 3000 mm Long & Above
Size : 5 mm To 500 mm
| Aluminium 1050 | Fe | Si | Mg | Mn | Cu | Zn | Ti | Al |
| 0.15 – 0.25 | 0.10 – 0.20 | 0.01 – 0.03 | 0.01 – 0.03 | 0.01 – 0.05 | 0.01 – 0.03 | 0.020 – 0.030 | 99.50 |
| Mechanical Properties – Al 1050 | ||||||
| Alloy | Temper | UTS(Mpa) | % Elongation | |||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||
| 1050 | O | 55 | 75 | 25 | 25 | 30 |
| H12 | 75 | 110 | 6 | 6 | 7 | |
| H14 | 90 | 120 | 5 | 5 | 6 | |
| H16 | 95 | 130 | 4 | 4 | 4 | |
| H18 | 130 | — | 3 | 3 | 3 | |
Density : 2.7 g/cm³
Melting point : 660.3 °C
Proof Stress : 85 Min MPa
Tensile Strength : 105 – 145 MPa
| STANDARD | UNS | WERKSTOFF NR. |
| Aluminium 1050 | A91050 | 3.0255 |
Vidit Aluminium based in Dubai, UAE is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminum 1050 Hex Bars to meet specific project needs. Our team at Vidit Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@viditaluminium.ae
Aluminium 1050 hex bars are versatile industrial products used across various applications due to their excellent corrosion resistance, high thermal and electrical conductivity, and good workability. These bars are ideal for manufacturing heat exchangers, finned tubes, electrical conductors, chemical processing equipment, and architectural components. Their low density and lightweight make them suitable for aerospace and automotive industries, offering enhanced performance without significant weight increases. Additionally, they are commonly used in the fabrication of food processing equipment due to their resistance to corrosion and ease of cleaning.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
