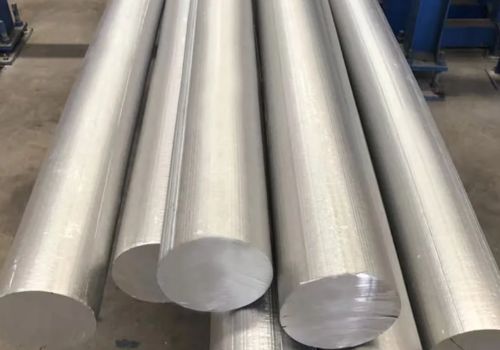

VIDIT Aluminium is a leading manufacturer and supplier of Aluminium 1050 Bars in Dubai, UAE, providing premium quality products recognized for their purity, corrosion resistance, and versatility. Aluminium 1050 is a high-purity alloy that offers excellent forming and machining characteristics, making it suitable for a wide range of industrial and commercial applications. At VIDIT Aluminium, we adhere to strict quality standards and advanced production processes to deliver bars with outstanding surface finish, durability, and reliability. Our Aluminium 1050 Bars are widely used in electrical, chemical, architectural, and general engineering sectors, serving industries across the UAE and global markets.
Aluminium 1050 Bars are made up of 99.5% pure aluminium, with small amounts of silicon, iron, copper, manganese, and zinc to boost their performance. They showcase a tensile strength ranging from 60 to 100 MPa, along with excellent elongation and a low density of 2.71 g/cm³, which makes them both lightweight and durable. These bars also feature high thermal conductivity (around 222 W/mK) and good electrical conductivity. While they may not be as strong as some alloyed grades, they excel in corrosion resistance, machinability, and formability, making them ideal for various industrial and commercial fabrication needs.
Standards : ASTM B221, B211, B565, B316, AMS 4121 2014
Temper : O
Standard : ASTM, ASME, AMS, GB/T, JIS
Length : 1000-6000
Diameter : 6-150
Finish : Bright, Polish & Black
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
| Alloy (ISS) | Equivalent alloy (A.A) | Copper | Magnesium | Silicon | Iron | Managanese Others* (Total) | Remarks | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Old | New | U.S.A | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max | Max. | Aluminum 99.0% Min. | ||
| 1 B | 19500 | 1050 | — | 0.05 | — | — | — | 0.30 | 0.4 | — | 0.05 | 0.1 | Aluminum 99.5% Min. | ||
| Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) | ||
| EN AW-1050 A | F | 60 | – | 20 | – | 23 |
| O | 60 | 95 | 20 | – | 23 | |
| European Standard | BS (OLD) | USA (AA) | GERMANY (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-1050 A | 1E | 1050 | Al99.5 | Al99.5 | 19500, 19501 | 1 S |
Vidit Aluminium based in Dubai, UAE is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| Diameter | Weight |
|---|---|
| 6 mm | 0,076 Kg/m |
| 7 mm | 0,104 Kg/m |
| 8 mm | 0,136 Kg/m |
| 9 mm | 0,172 Kg/m |
| 9,5 mm | 0,191 Kg/m |
| 10 mm | 0,212 Kg/m |
| 11 mm | 0,257 Kg/m |
| 12 mm | 0,305 Kg/m |
| 12,5 mm | 0,331 Kg/m |
| 13 mm | 0,358 Kg/m |
| 14 mm | 0,416 Kg/m |
| 16 mm | 0,543 Kg/m |
| 16,5 mm | 0,577 Kg/m |
| 18 mm | 0,687 Kg/m |
| 19 mm | 0,766 Kg/m |
| 20 mm | 0,848 Kg/m |
| 22 mm | 1,026 Kg/m |
| 25 mm | 1,325 Kg/m |
| 28 mm | 1,663 Kg/m |
| 30 mm | 1,909 Kg/m |
| 31 mm | 2,038 Kg/m |
| 32 mm | 2,171 Kg/m |
| 35 mm | 2,598 Kg/m |
| 38 mm | 3,062 Kg/m |
| 40 mm | 3,393 Kg/m |
| 45 mm | 4,294 Kg/m |
| 50 mm | 5,301 Kg/m |
| 55 mm | 6,415 Kg/m |
| 60 mm | 7,634 Kg/m |
| 65 mm | 8,959 Kg/m |
| 70 mm | 10,391 Kg/m |
| 75 mm | 11,928 Kg/m |
| 80 mm | 13,572 Kg/m |
| 90 mm | 17,177 Kg/m |
| 100 mm | 21,206 Kg/m |
| 105 mm | 23,379 Kg/m |
| 110 mm | 25,659 Kg/m |
| 120 mm | 30,536 Kg/m |
| 127 mm | 34,203 Kg/m |
| 130 mm | 35,838 Kg/m |
| 140 mm | 41,563 Kg/m |
| 150 mm | 47,713 Kg/m |
| 180 mm | 68,707 Kg/m |
| 200 mm | 84,823 Kg/m |
Yes, we offer custom sizes for Aluminium 1050 Bars to meet specific project needs. Our team at Vidit Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@viditaluminium.ae

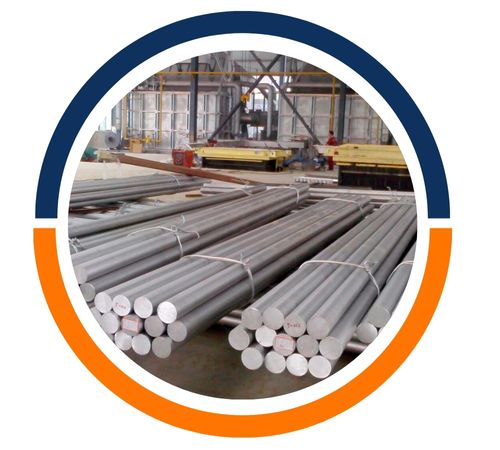

UNS A91050 Round Bars are used in a variety of applications due to their excellent corrosion resistance and high thermal and electrical conductivity. They are commonly used in the manufacturing of heat exchangers, electrical cables, cookware and architectural structures. The bars good workability makes them ideal for bending, cutting, and machining, making them suitable for use in automotive parts, signage, and decorative applications as well.
